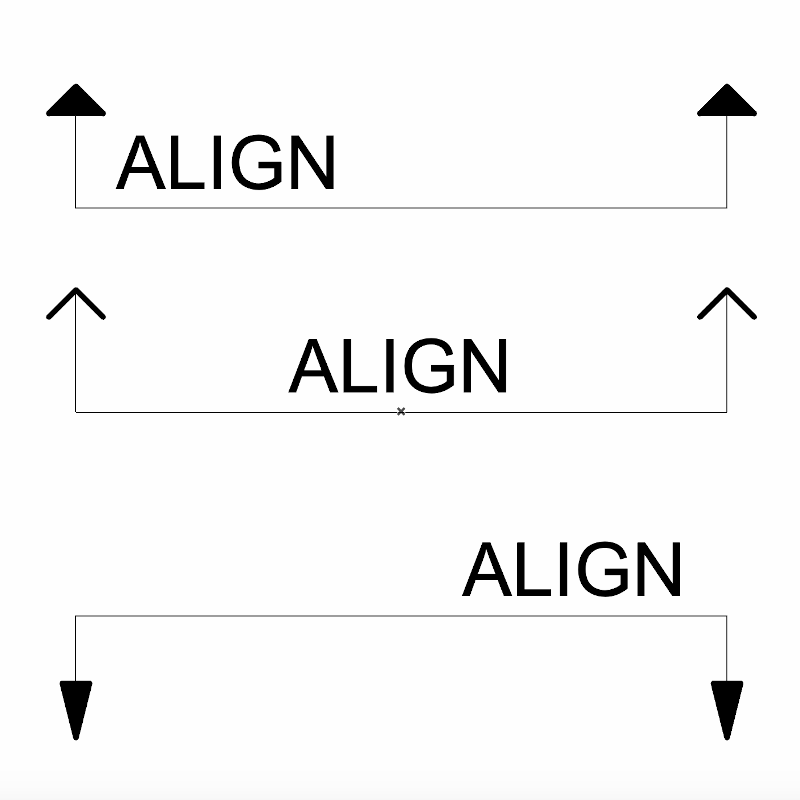

archiSYM | AlignLabel
ARCHICAD 20 and later
last update: 02.23.21
Allows quick placement of alignment notations.
Parameters include:
- graphically sizable (stretchy)
- multiple arrowhead styles
- label text
- text font settings
- text location/justification
- pen color(s)
free

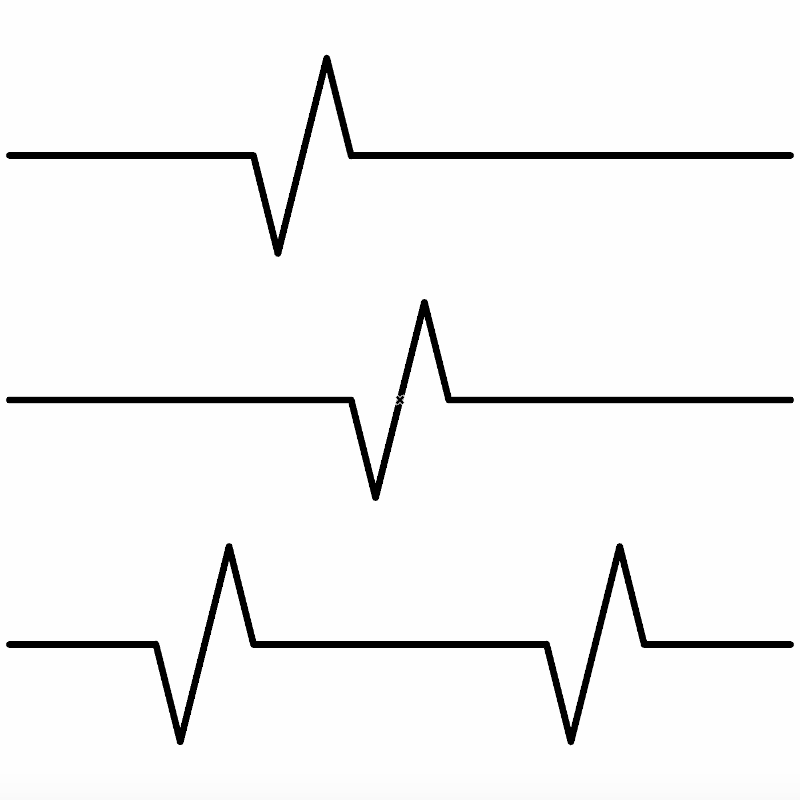

archiSYM | BreakLine
ARCHICAD 20 and later
last update: 06.17.21
Allows quick placement of break lines.
Parameters include:
- graphically sizable (stretchy)
- single/double lines
- masking
- mark sizing
- mark location
- number of marks (1-3)
- pen color(s)
free

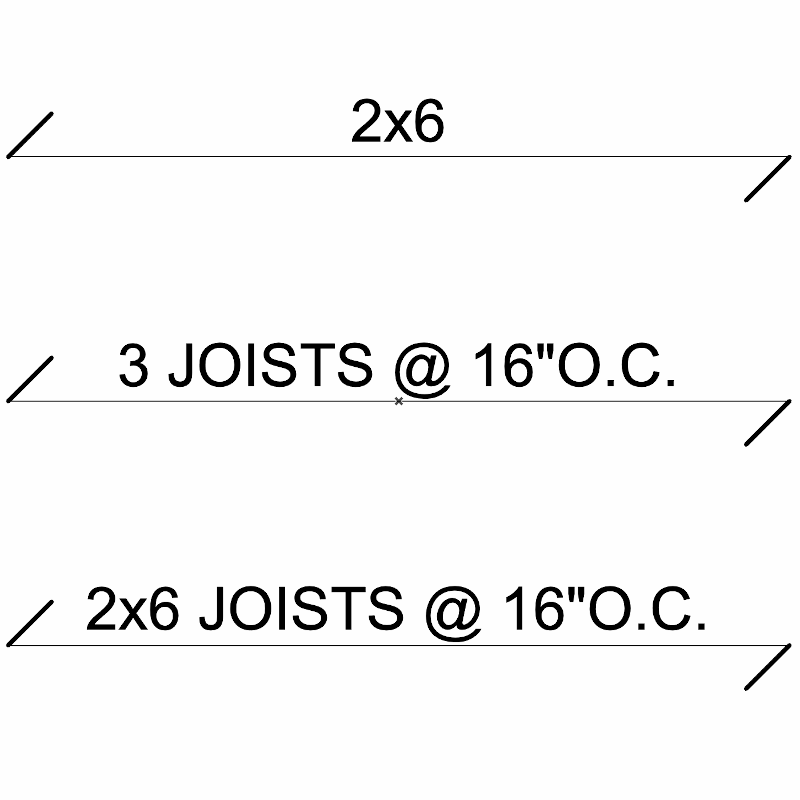

archiSYM | JoistLabel
ARCHICAD 20 and later
last update: 02.23.21
Allows quick placement and notation of joists direction/spacing. Automatically counts and displays number of joists along total span.
Parameters include:
- graphically sizable (stretchy)
- label text format
- joist size
- joist spacing
- pen color(s)
free

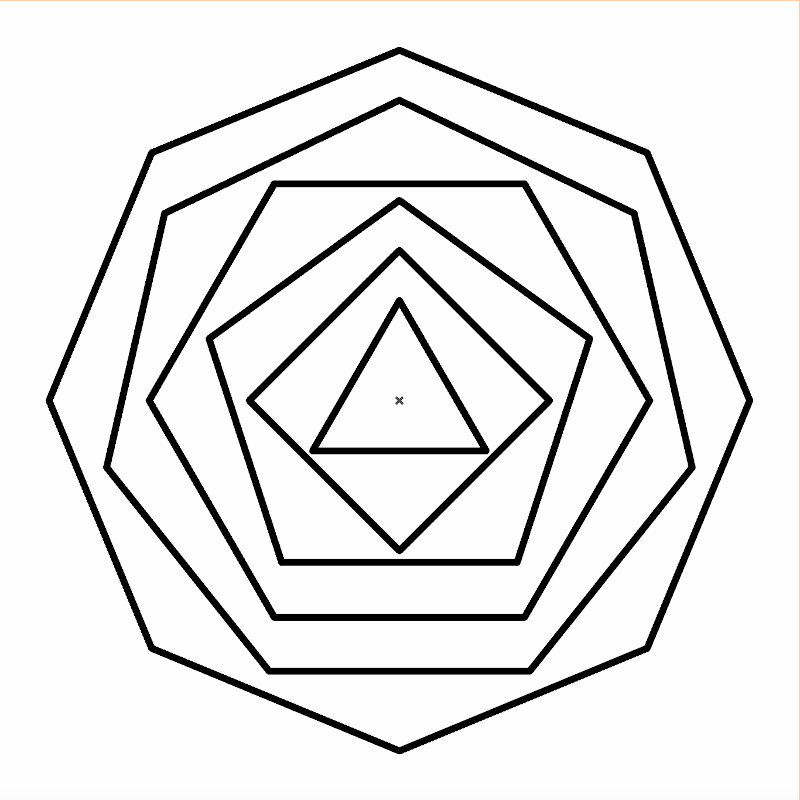

archiSYM | Polygon (archiGON)
ARCHICAD 20 and later
last update: 06.08.17
Allows quick placement and customization of symmetrical polygon shapes. Number of sides (3-8).
Parameters include:
- number of sides
- symmetrical lock
- tag label text
- text formating
- line type
- pen color(s)
free

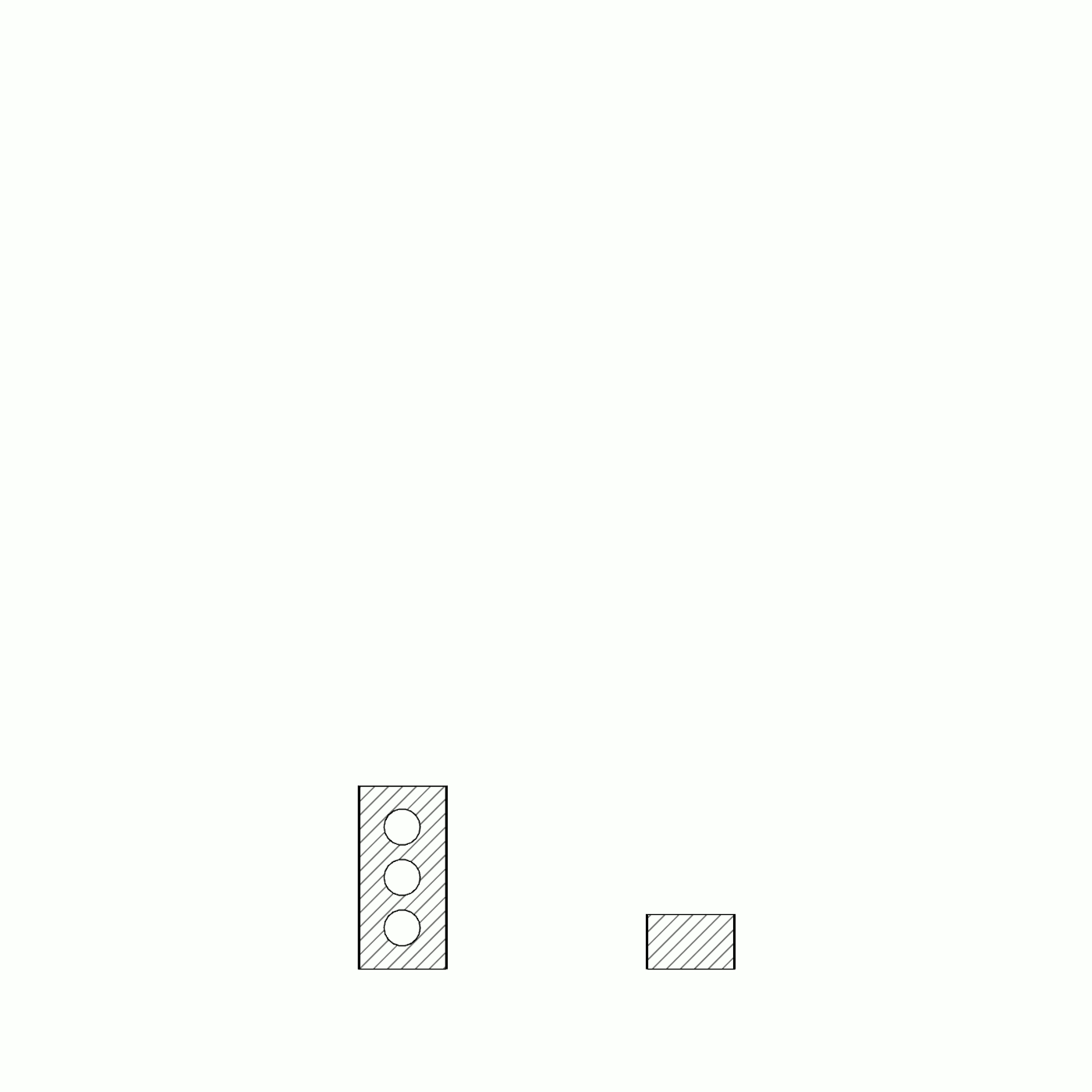

archiDETAIL | Brick
ARCHICAD 20 and later
last update: 07.27.21
A parametric 2D object that helps produce fast and accurate brick sections for plan and section detailing.
Parameters include:
- graphically sizable (stretchy)
- plan / section
- brick size (modular, king, etc.)
- mortar joint size and type
- coursing count
- cell reinforcing
- fill type(s)
- line type(s)
- pen color(s)
$18.00 USD

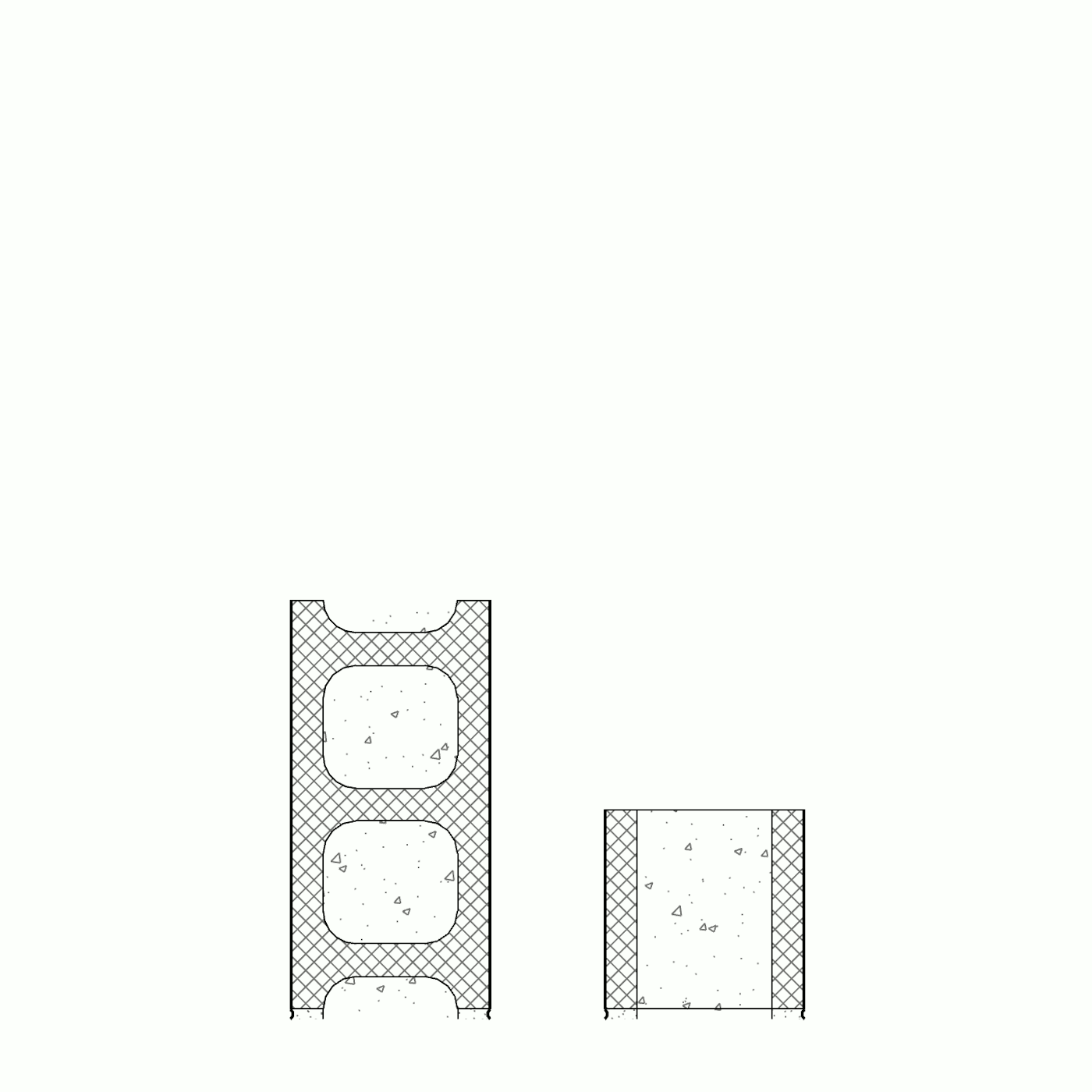

archiDETAIL | CMU
ARCHICAD 20 and later
last update: 07.27.21
A parametric 2D object that helps produce fast and accurate CMU sections for plan and section detailing.
Parameters include:
- graphically sizable (stretchy)
- plan / section
- block size and type
- mortar joint size and type
- coursing count
- cell reinforcing
- fill type(s)
- line type(s)
- pen color(s)
$18.00 USD

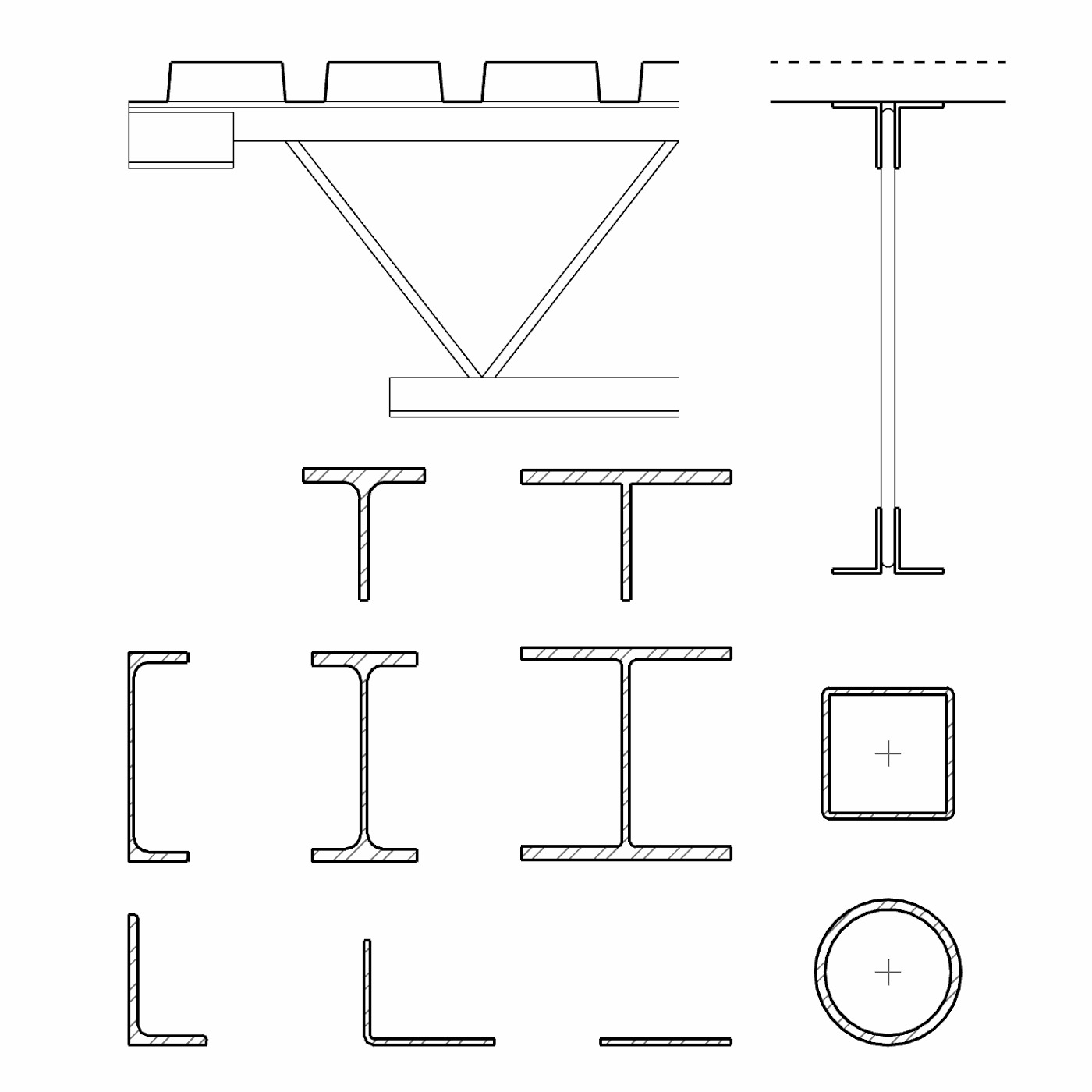

archiDETAIL | Steel
ARCHICAD 20 and later
last update: 08.08.21
A parametric library of 2D objects that helps produce fast and accurate steel shapes detailing.
Objects included:
- bent plate
- flat plate
- round pipe
- C shape (channel)
- L shape (angle)
- S shape (I beam)
- ST shape (I beam "T")
- TS shape (tube)
- W shape (wide flange)
- WT shape (wide flange "T")
- open web joist
- steel deck
Parameters include:
- graphically sizable (stretchy)
- ASTM / custom sizing
- fireproofing
- fill type(s)
- line type(s)
- pen color(s)
$45.00 USD

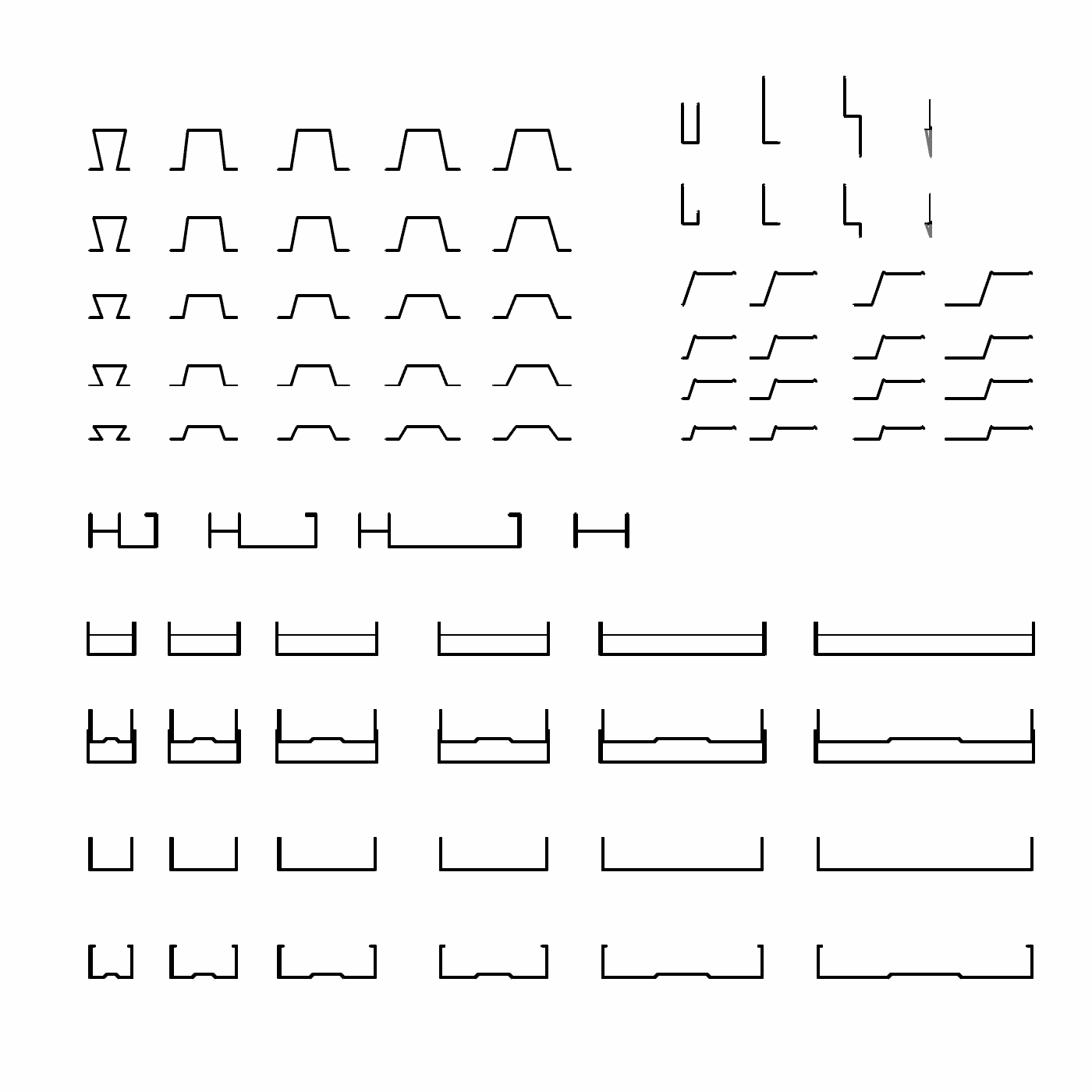

archiDETAIL | LGMF
ARCHICAD 20 and later
last update: 09.01.21
A parametric library of 2D objects that helps produce fast and accurate light gauge metal framing and trim for detailing.
Objects included:
- metal framing
- metal trim
Parameters include:
- graphically sizable (stretchy)
- framing / trim type
- ASTM / custom sizing
- misc. options
- fill type(s)
- line type(s)
- pen color(s)
$18.00 USD
archiDETAIL | Fasteners
ARCHICAD 20 and later
last update: 09.01.21
A parametric library of 2D objects that helps produce fast and accurate fasteners for detailing.
Objects included:
- bolt
- screw
- nail
- brick tie
- suspension tie
Parameters include:
- graphically sizable (stretchy)
- ASTM / custom sizing
- misc. options
- fill type(s)
- line type(s)
- pen color(s)
$18.00 USD

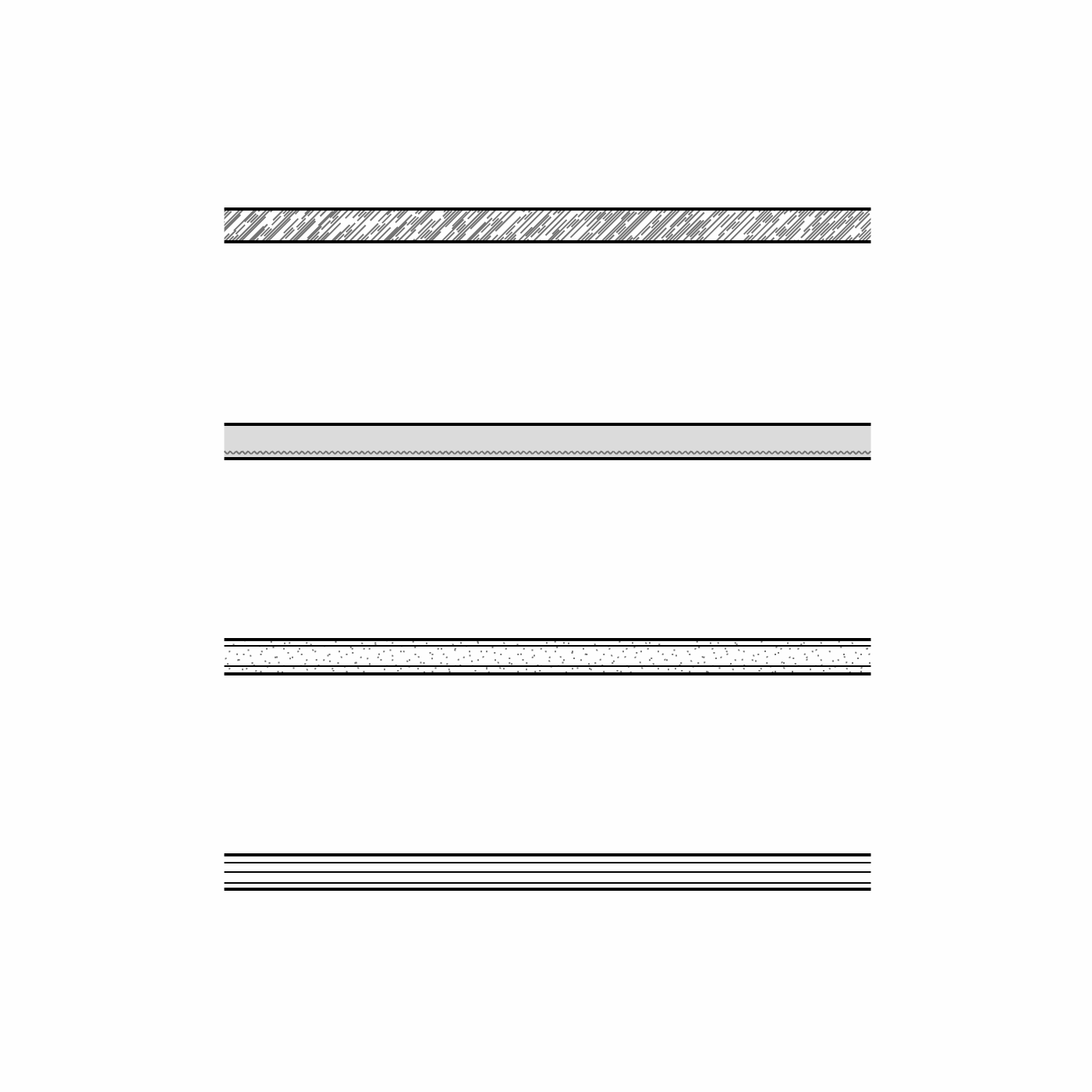

archiDETAIL | Sheathing
ARCHICAD 20 and later
last update: 05.30.16
A parametric 2D object that helps produce fast and accurate sheathing for detailing.
Parameters include:
- graphically sizable (stretchy)
- sheathing type
(plywood, gyp. bd, plaster, custom)
- scale-sensitive detail
- misc. sizing/options
- fill type(s)
- line type(s)
- pen color(s)
$18.00 USD

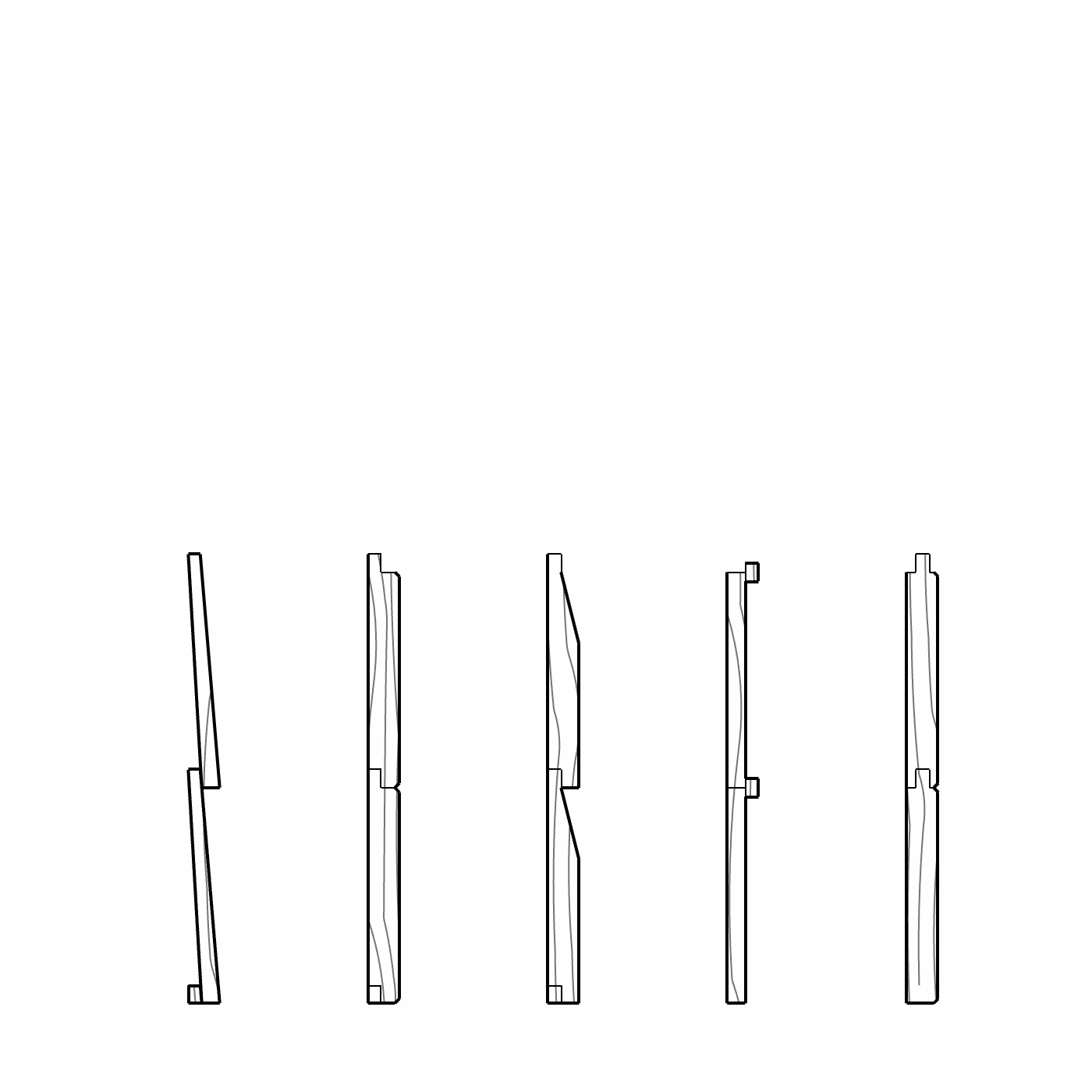

archiDETAIL | Siding
ARCHICAD 20 and later
last update: 05.30.16
A parametric 2D object that helps produce fast and accurate siding for detailing.
Parameters include:
- graphically sizable (stretchy)
- siding type
(lap, shiplap, drop, board&batten, T&G)
- misc. sizing/options
- fill type(s)
- line type(s)
- pen color(s)
